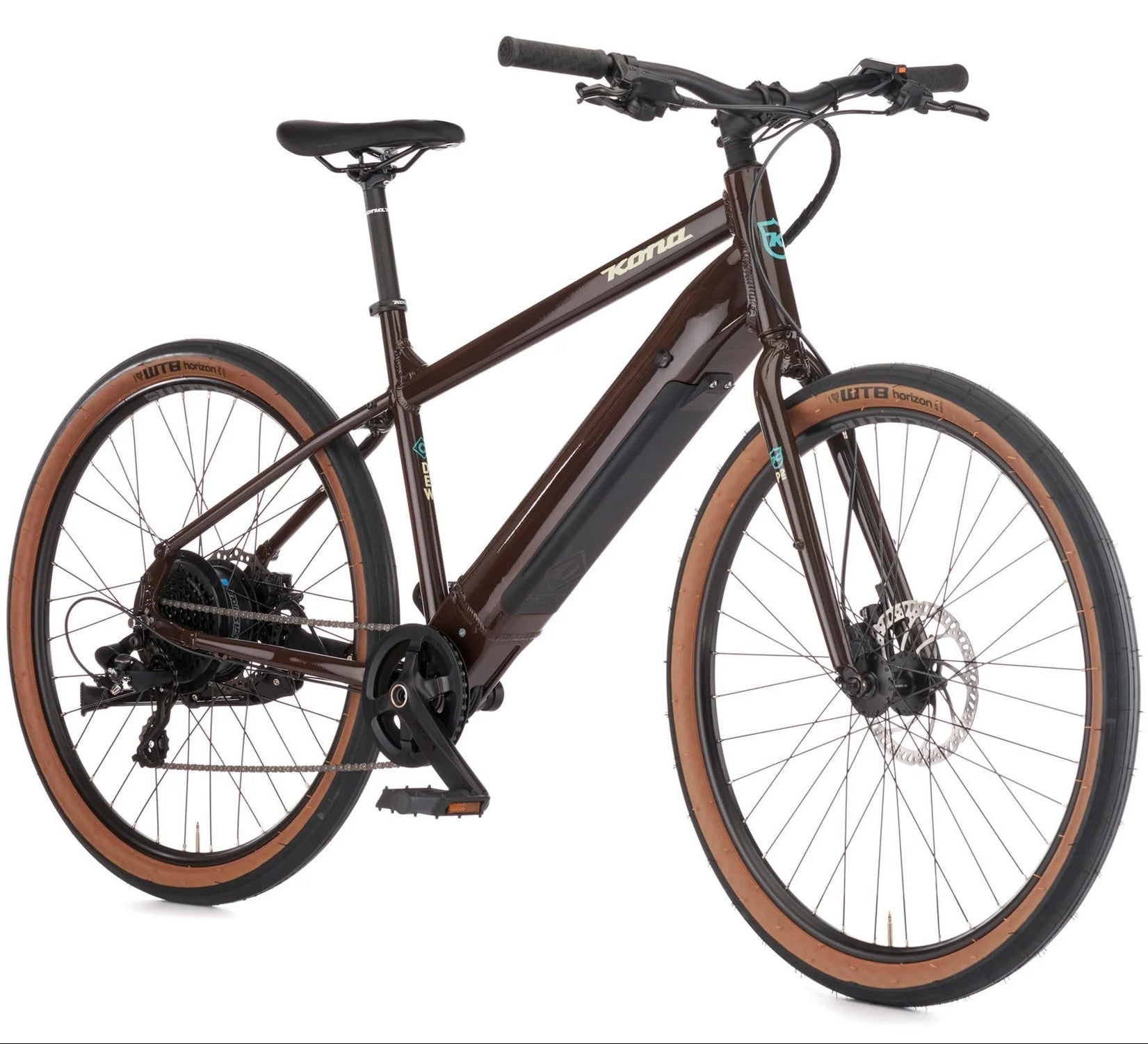

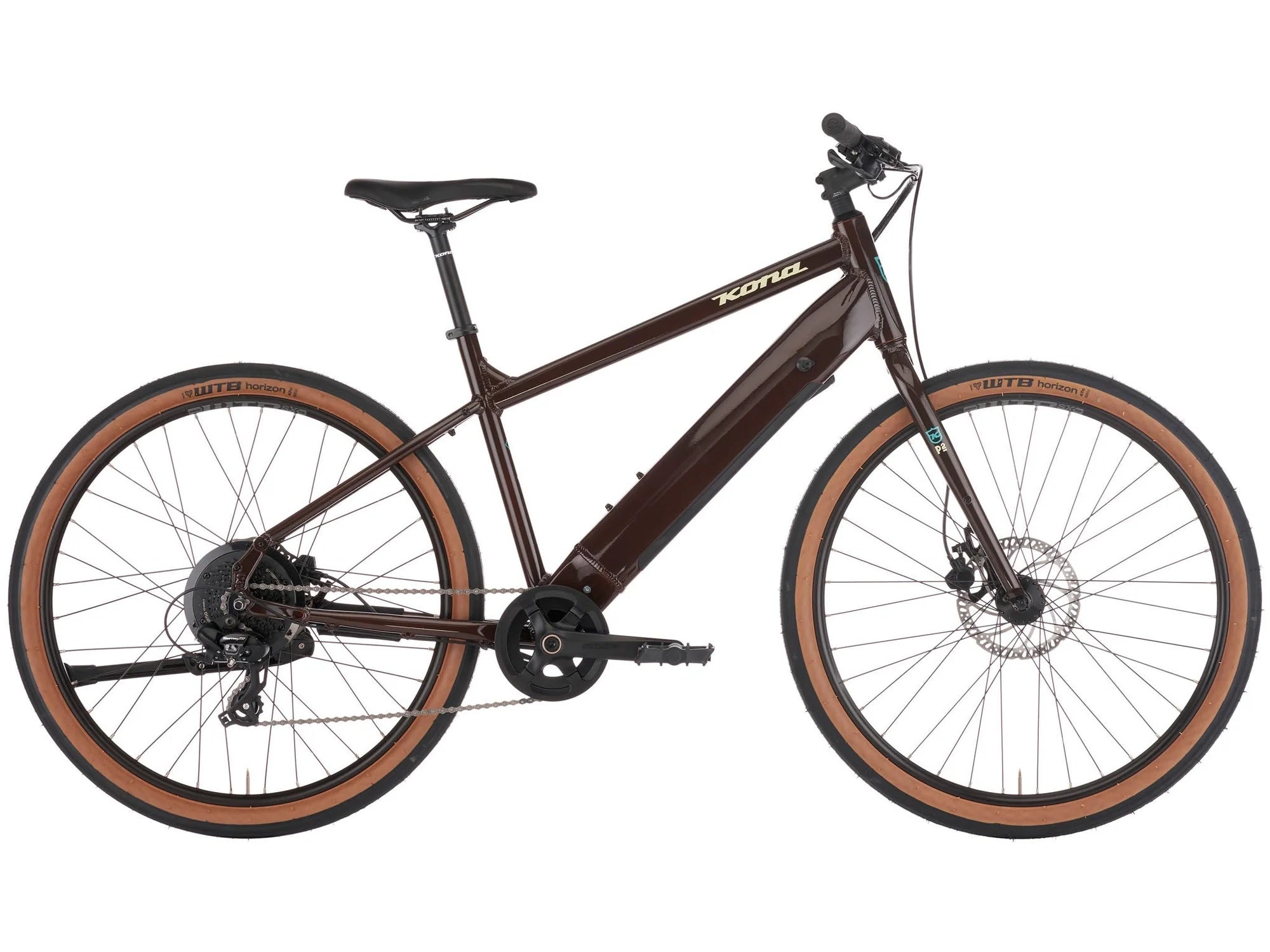

Hub drive electric bike seeking ideal rider! Hi! My name is Dew HD! I’m affordable, super fun, stylish, extremely practical, easy-riding, helpful, full of light. You: loathe climbing hills, love (pedal) assistance, enjoy smiling, like going fast, don’t love working that hard if you don’t have to, need a companion to carry your groceries/beer/kids/dog/gear to and from wherever. Let’s fall in love!
SPECS & GEOMETRY
SPECIFICATIONS

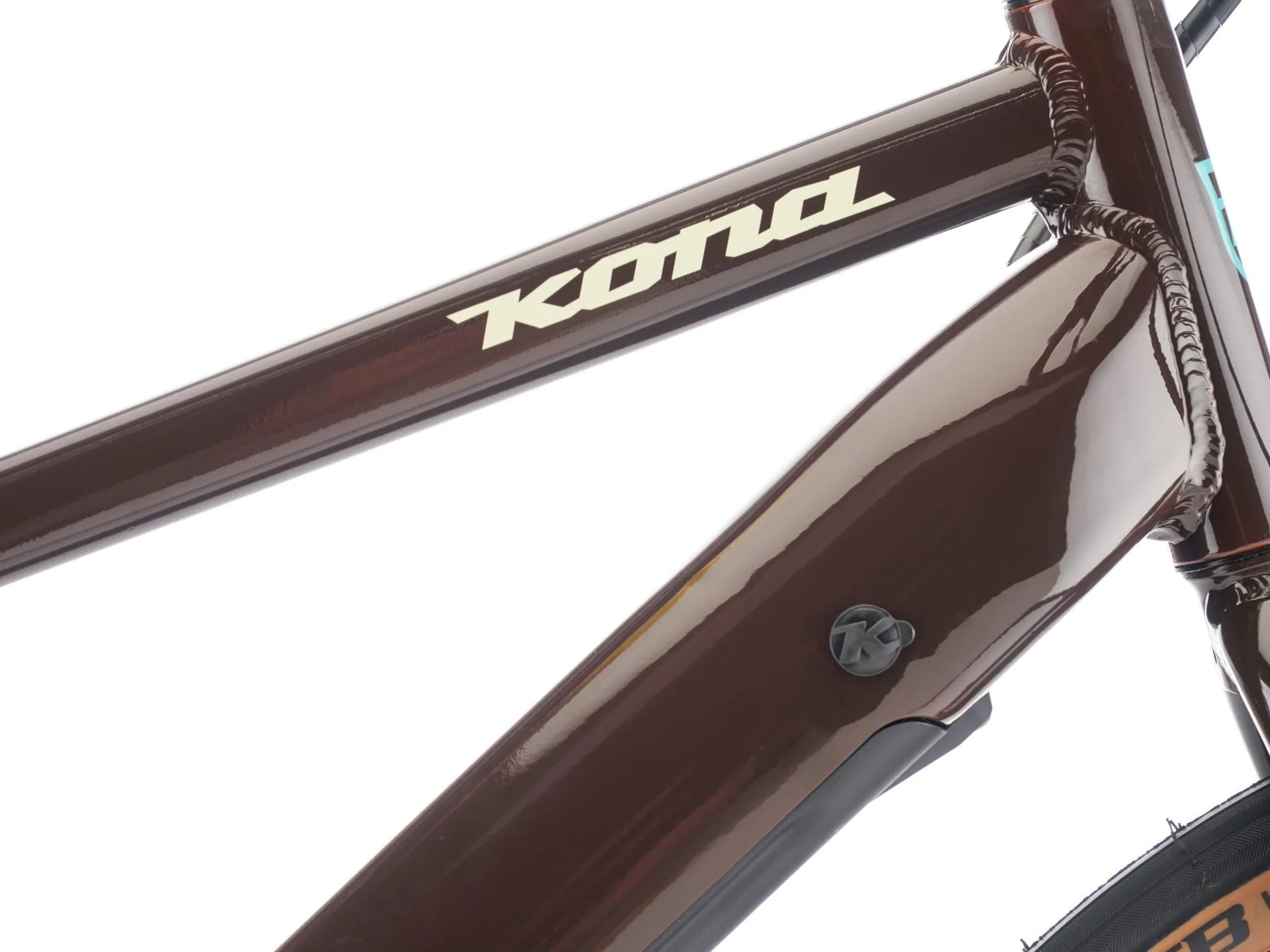

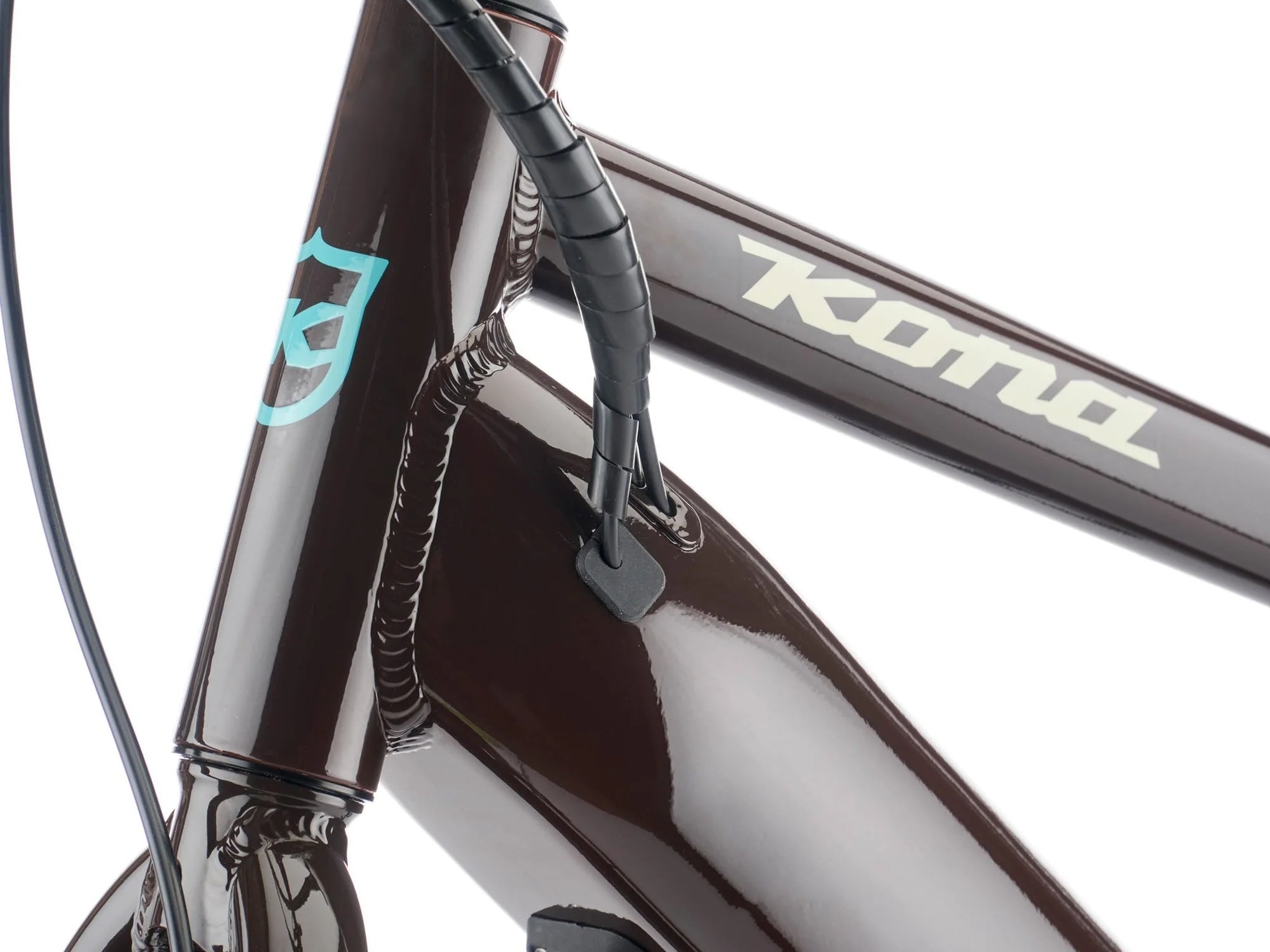

| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | S, M, L, XL |
| Rear Shock | n/a |
| Fork | Kona Project Two Aluminum Disc |

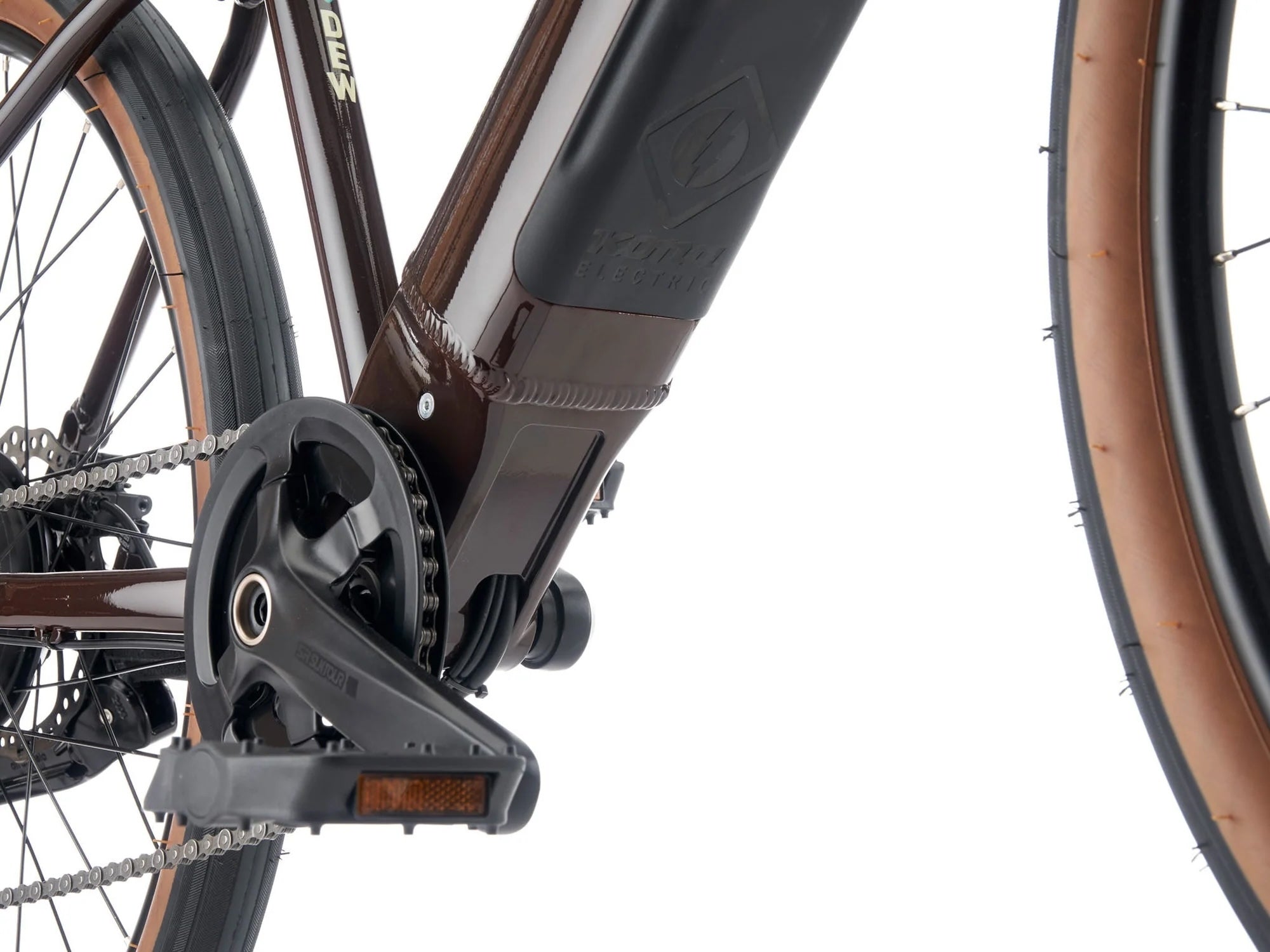

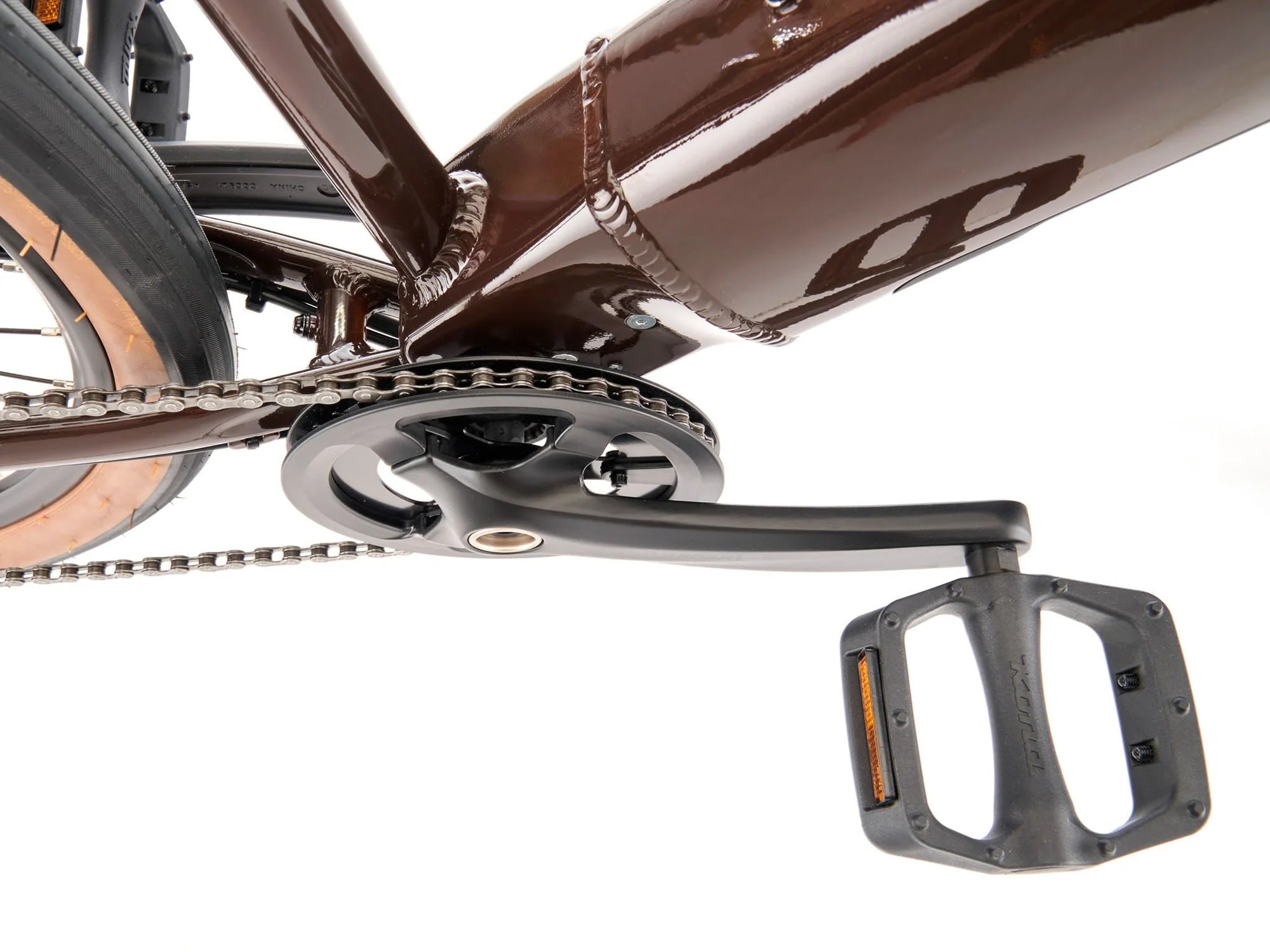

| Crankarms | Suntour |
| Chainrings | 38t |
| B/B | Suntour |
| Pedals | Kona JS2 |
| Chain | KMC Z8.3 |
| Cassette | Shimano Altus 11-32t 8spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Shimano TX |
| Shifters | Shimano Altus |
| Brake Calipers | Tektro HDM275 Hydraulic |
| Front Brake Rotor | Tektro TR180 180mm |
| Rear Brake Rotor | Tektro TR180 180mm |

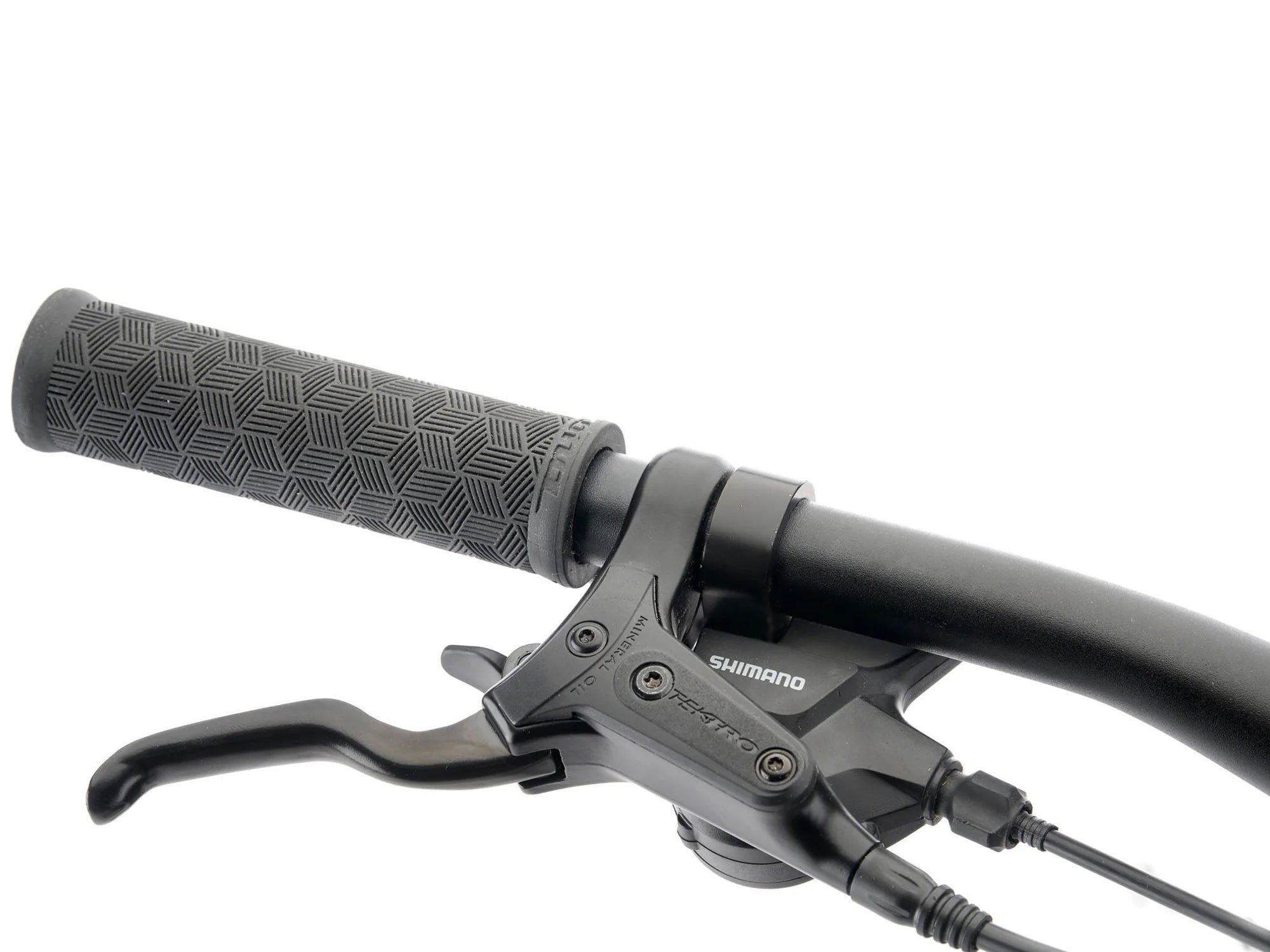

| Brake Levers | Tektro HDM275 Hydraulic |

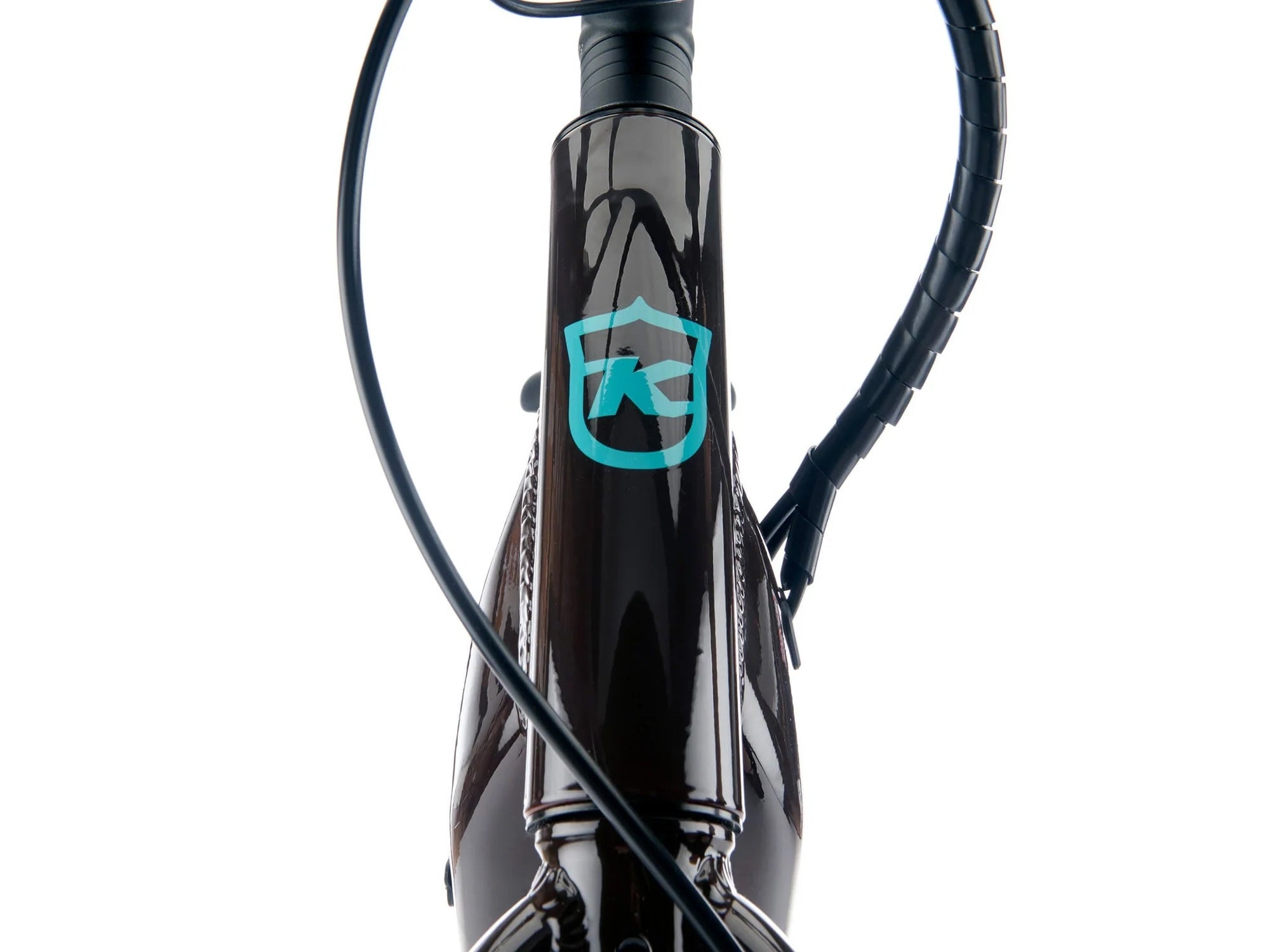

| Headset | Feimin FP-H863 |

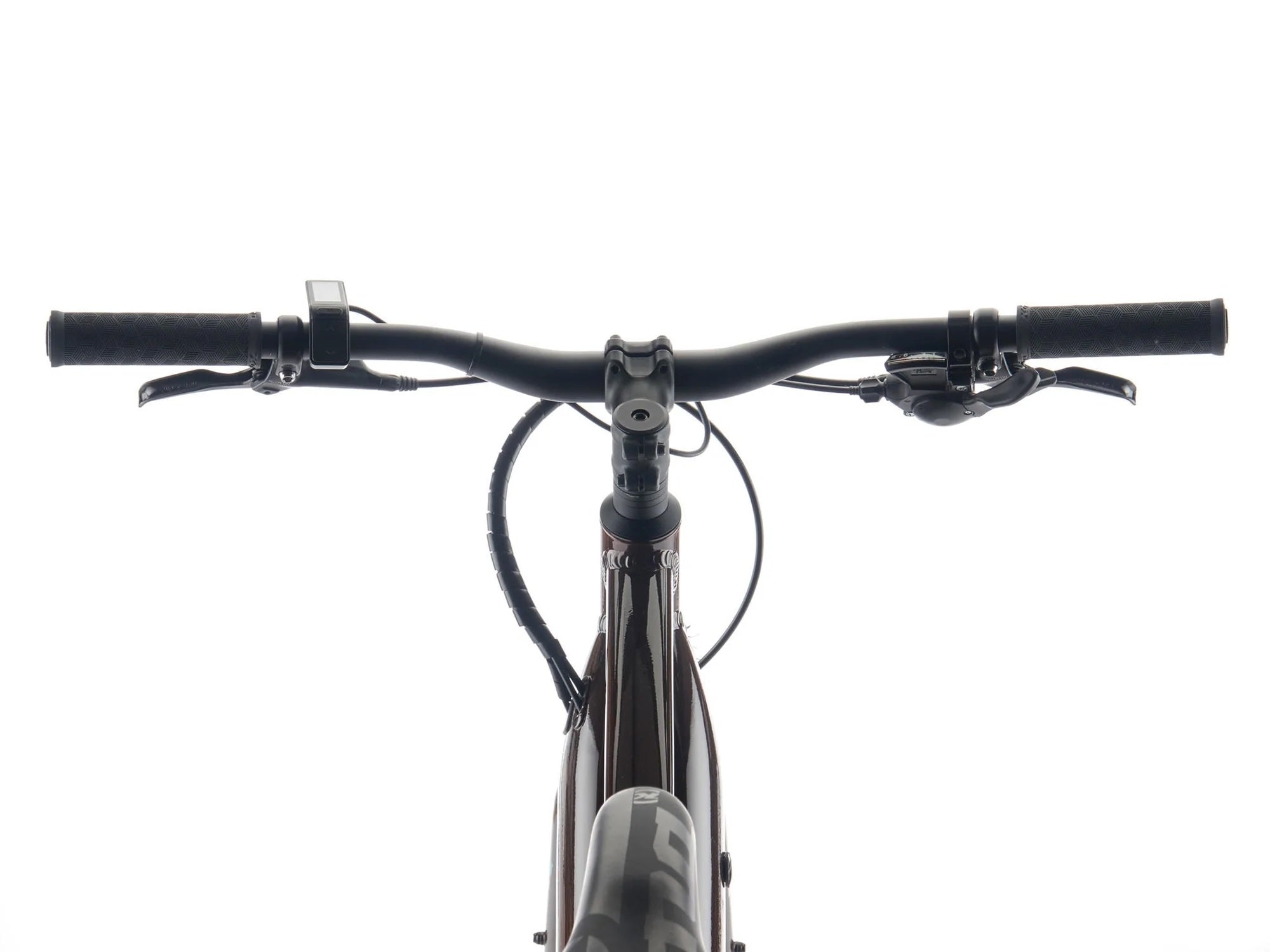

| Handlebar | Kona Aluminum Riser |
| Stem | Kona Control |
| Seatpost | Kona Commuter 27.2mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip Slip on |
| Saddle | Kona Commuter |
| Front Hub | Shimano 100x9mm |

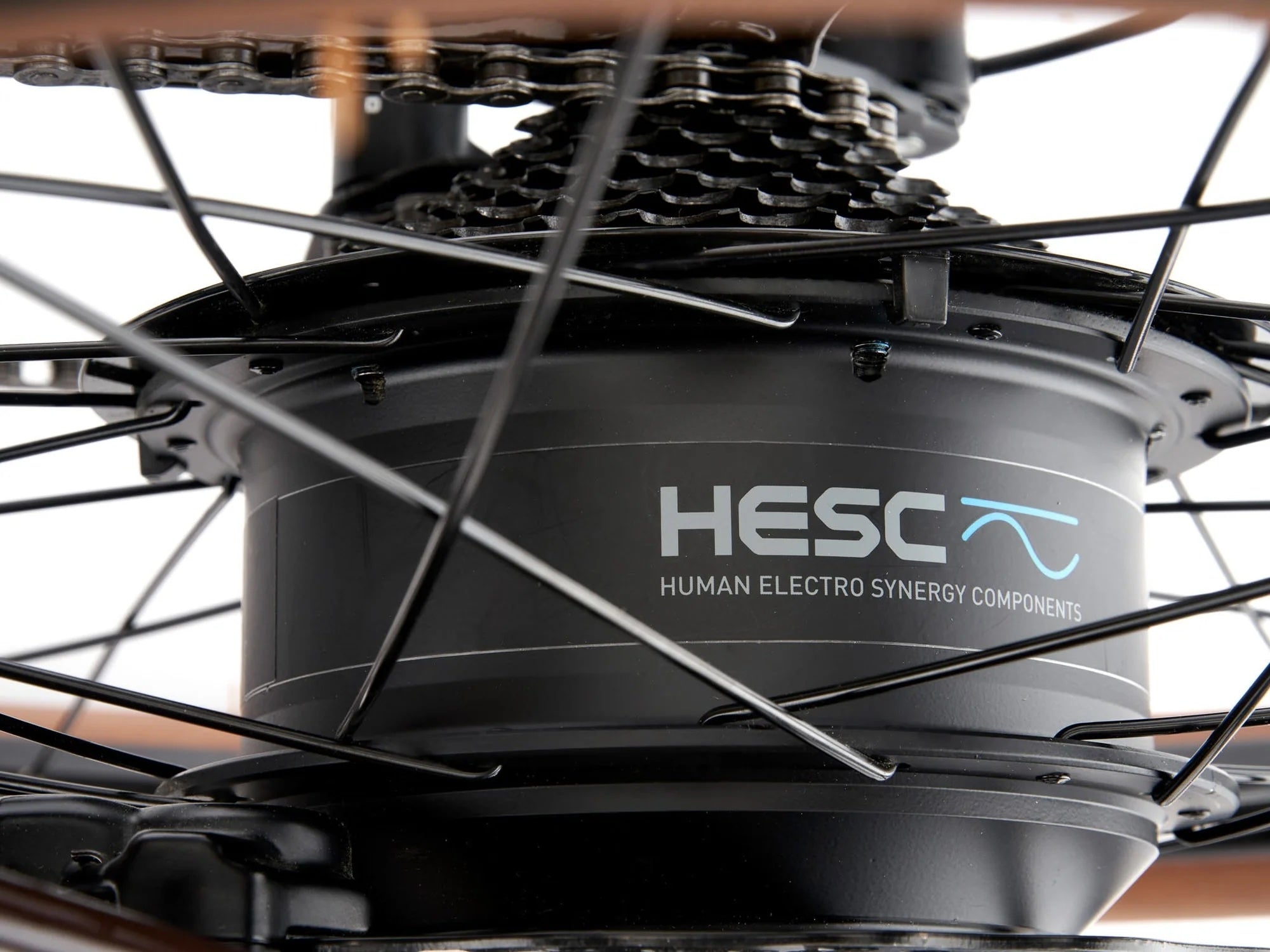

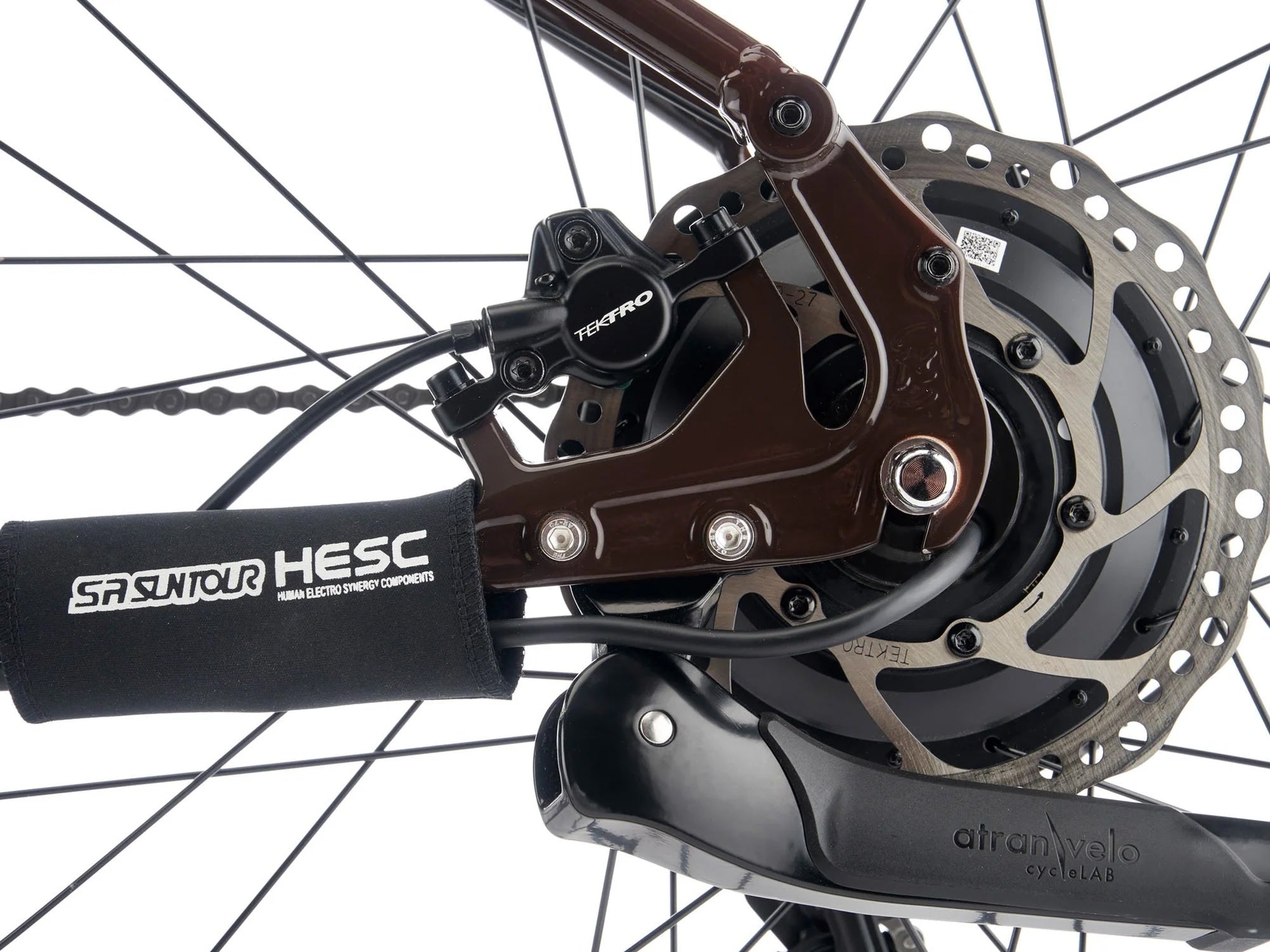

| Rear Hub | SR Suntour HD 15.8MPH |
| Spokes | Stainless Black 14g/13g |
| Rims | WTB SX19 |
| Front Tire | WTB Horizon Comp 650x47c |
| Rear Tire | WTB Horizon Comp 650x47c |
| DriveUnit | SR Suntour HD 20MPH |
| Battery | Phylion 418Wh |

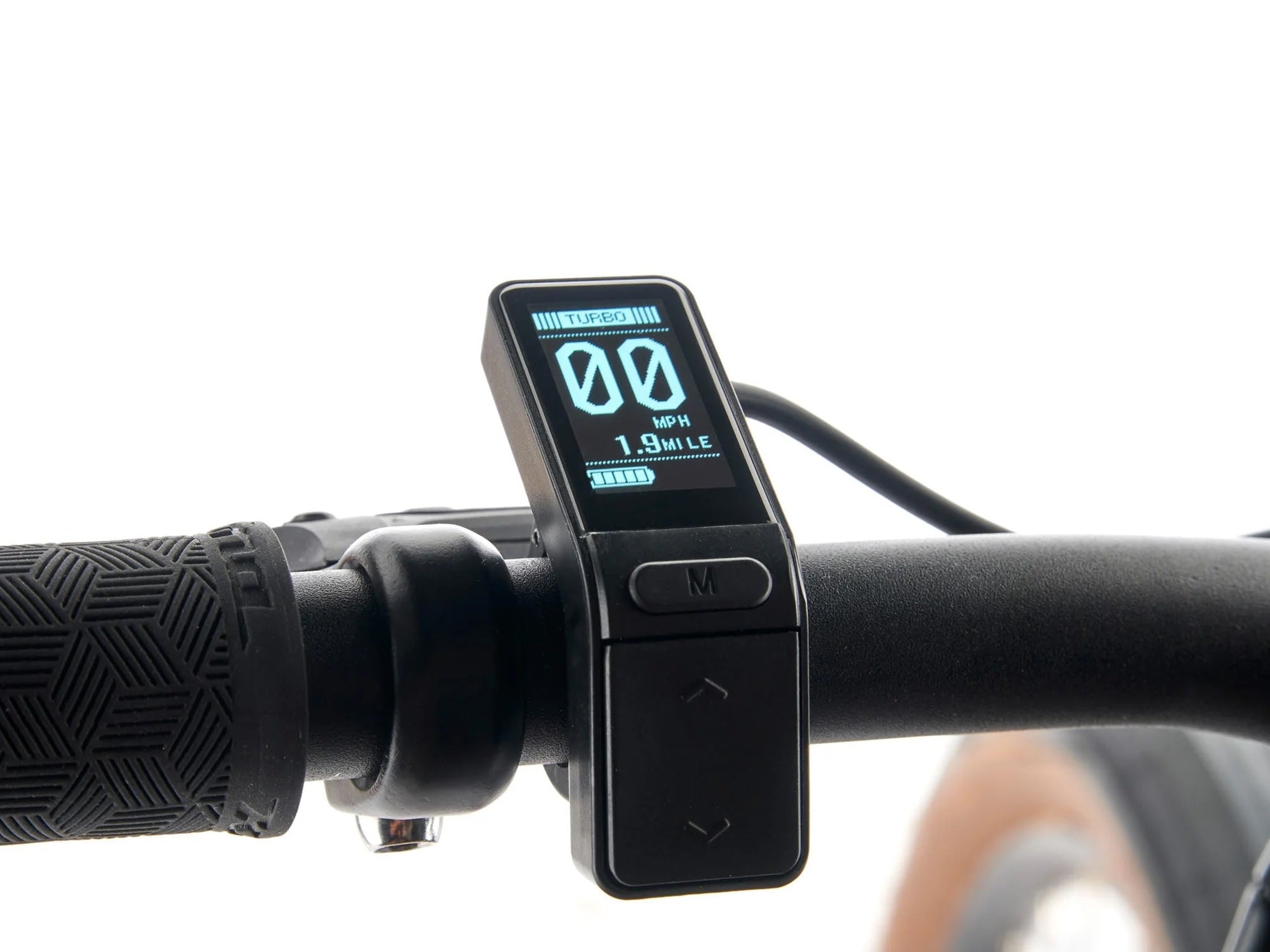

| Display | SR Suntour OLED Display |
| Charger | Phylion 2A |

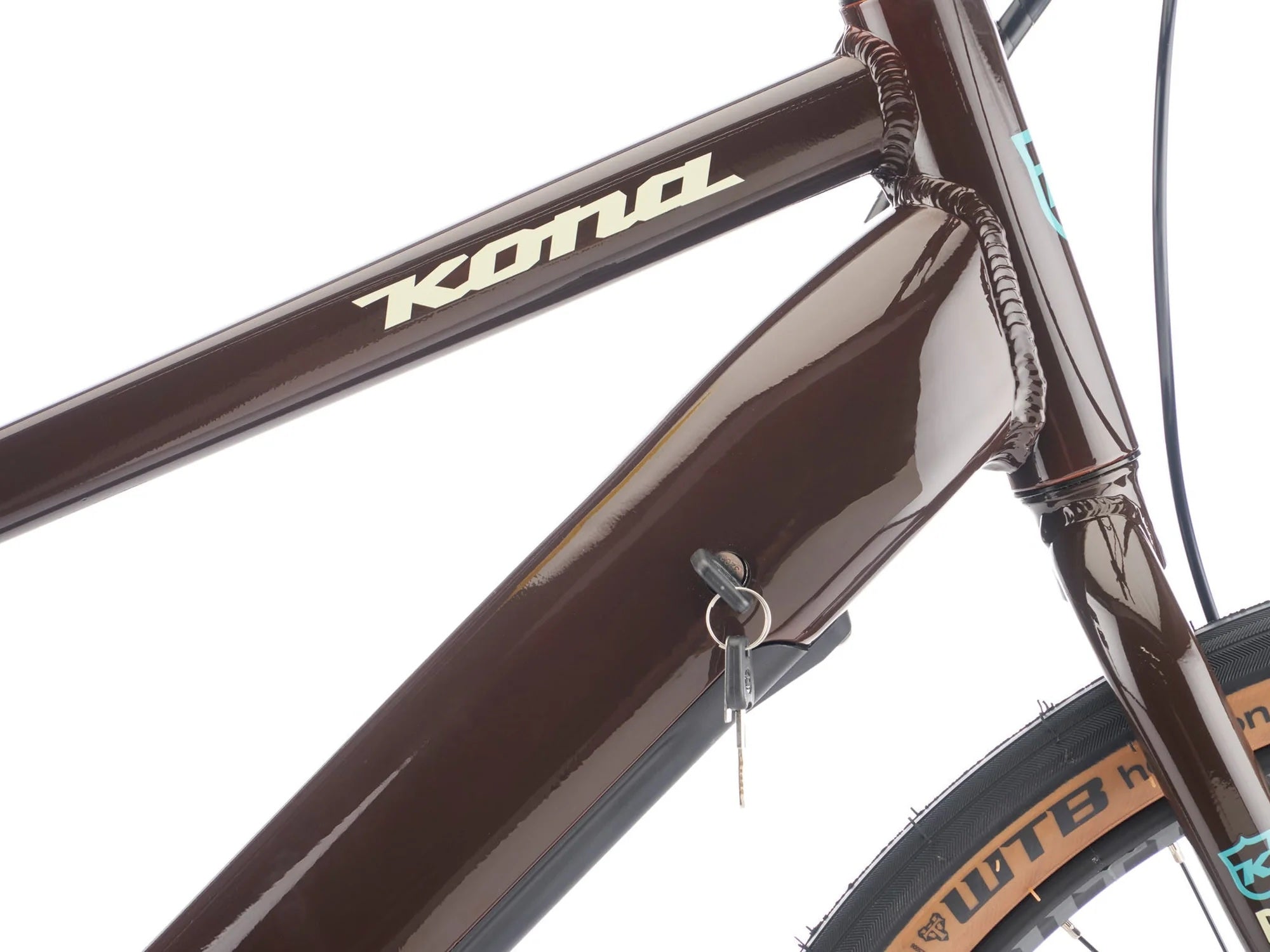

| BatteryLock | SR Suntour |
| Paint Color | Gloss Thunder w/ Sandal & Eris Decals |

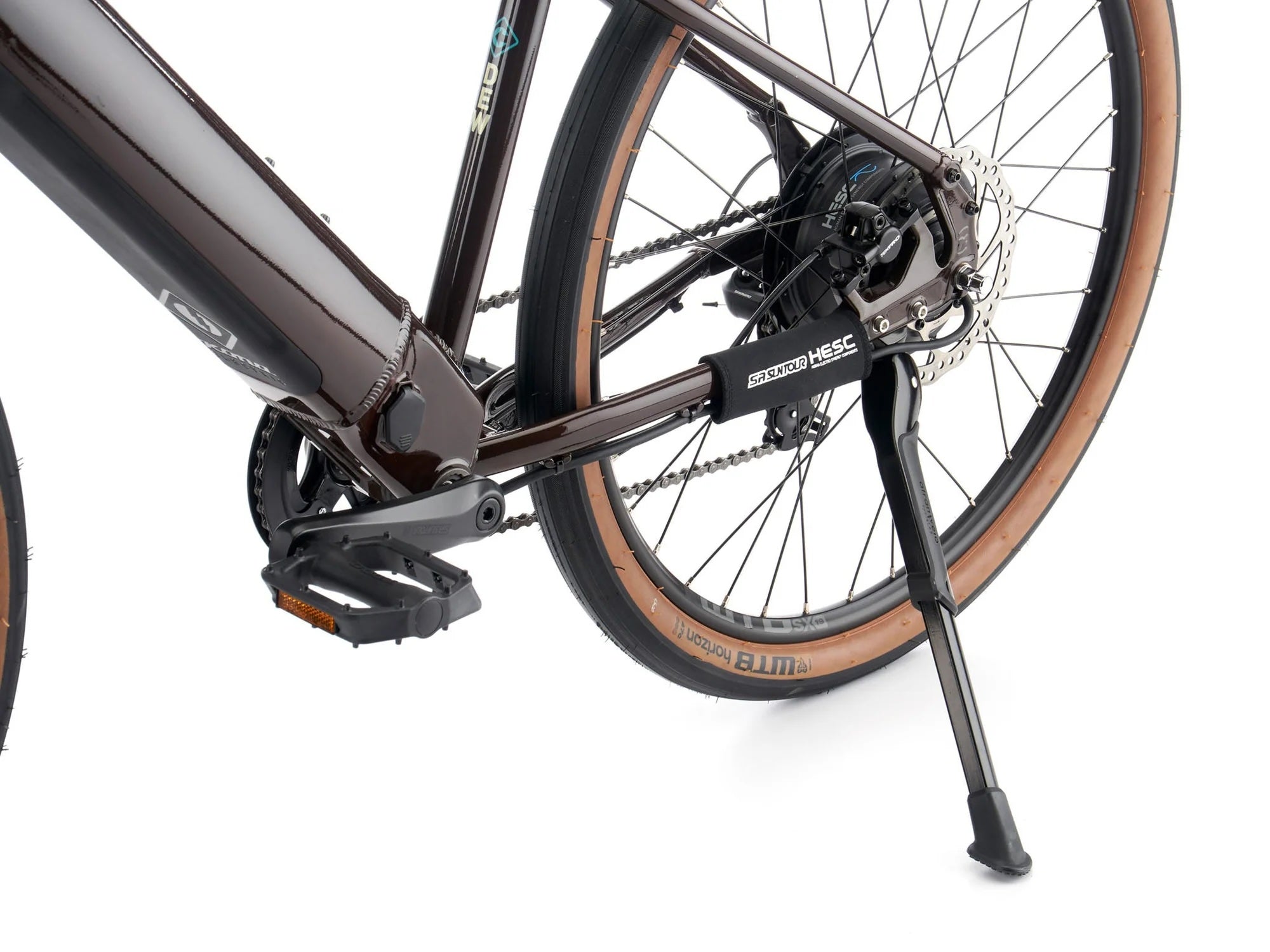

| Extras | Kickstand |
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 420 | 470 | 520 | 580 |
| 2 | TT Length | 550 | 597 | 636 | 686 |
| 3 | Reach | 398 | 423 | 439 | 465 |
| 4 | Stack | 568 | 606 | 643 | 681 |
| 5 | Standover | 685 | 720 | 756 | 797 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 145 | 185 | 225 | 265 |
| 8 | ST Angle | 75.0 | 74.0 | 73.0 | 72.0 |
| 9 | CS Length | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 282 | 282 | 282 | 282 |
| 12 | Wheelbase | 1082 | 1121 | 1150 | 1190 |
| 13 | Front Center | 639 | 677 | 707 | 747 |
| 14 | Fork Length | 409 | 409 | 409 | 409 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |
All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.
All specifications are subject to change without notice.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
